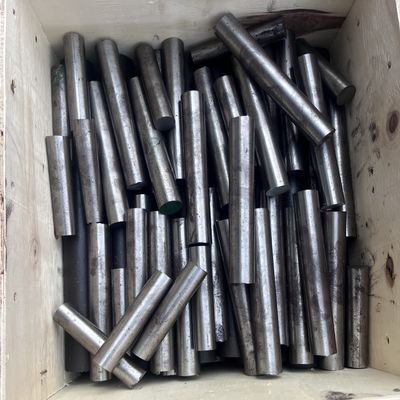

ASTM A276 XM-19 UNS S20910 Nitronic50 EN10088-3 DIN 1.3964 Stainless Steel Solid Rod
Introduction
Nitronic 50 stainless steel is an austenitic stainless steel with a blend of strength and corrosion resistance that is higher than stainless steel grades 316, 316/316L, 317, and 317/317L .
The high strength, corrosion resistance, and low magnetic permeability of this alloy allows it to be used as a material for medical implants.
The following sections will discuss in detail about stainless steel grade NITRONIC50 (XM-19).
Chemical Composition
The chemical composition of stainless steel grade NITRONIC50 (XM-19) is outlined in the following table.
| Element |
Content (%) |
| Chromium, Cr |
20.5-23.5 |
| Nickel, Ni |
11.5-13.5 |
| Manganese, Mn |
4-6 |
| Molybdenum, Mo |
1.5-3 |
| Silicon, Si |
1 max |
| Nitrogen, N |
0.20-0.40 |
| Niobium, Nb |
0.10-0.30 |
| Vanadium, Va |
0.10-0.30 |
| Phosphorous, P |
0.04 max |
| Carbon, C |
0.06 max |
| Sulfur, S |
0.010 max |
Physical Properties
The physical properties of stainless steel grade NITRONIC50 (XM-19) are tabulated below.
| Properties |
Metric |
Imperial |
| Density |
7.88 g/cm3 |
0.285 lb/in3 |
Mechanical Properties
The following table shows mechanical properties of stainless steel grade NITRONIC50 (XM-19).
| Properties |
Metric |
Imperial |
| Tensile strength |
690 MPa |
100 ksi |
| Yield strength |
380 MPa |
55 ksi |
| Elongation |
35% |
35% |
| Hardness |
293 |
293 |
Q1: Do you accept the trial order ?
A1: Yes,if we have the exactly size in stock.we can delivery even 1 piece/meter .
Q2: Can I have free sample before making orders?
A2: Yes,we can supply free sample as requirement,but buyer needs to pay the freight charges ,the freight fee will return to buyer after making order.
Q3: How do you control the quality ?
A3: MTC and PMI will be sent before shipment,any 3rd party inspection if need .
Q4: How about your delivery time ?
A4: Generally delivery time is 15 working days .
Q5: How can I quickly get the price list ?
A5: Directly click "chat now" or send us email with detail specifications,you will get the official price list in 1 hour .
