Material Introduction:
Mn13 X120Mn12 is used wherever is required resistance to severe impact or high abrasion. All wear resistant parts in industries such as mining, railroad, foundries, quarries, steel mills, shot blasting and shot peening are made of this High Manganese. It is the best choice among the wear-resistant materials.
Mn13 X120Mn12 hadfield manganese steel is the best choice for resist-high impact ,the material of big stress in wear resistance.The high manganese steel have two biggest features: one is external impact more bigger ,the wear-resistance of appearance is more higher ; another is with the gradually abrasion of densified laminated appearance, new densified laminated process is formed continually.
Mn13 X120Mn12 hadfield manganese steel plate have wonderful abrasion resistance of high impact abrasion and big stress abrasion, when using it will not appear crash.It also has the excellence of easy for cutting ,welding ,curving and other mechanical properties for process.The traditional used high chrome forging only have the good wear-resistance of moving abrasion.
Mn13 X120MN12 hadfield manganese steel is reduced the cost of using for quick wear part of low equipment and save the overhaul fee of equipment,so it improves the competition.
DIN1.3401 Mn13 K700 Manganese steel Plate
Characteristics of products
·High abrasive resistance
·Strong plasticity and impact toughness
·It is work hardening steel - the more impact and abrasion it gets the harder the surface becomes.
·Steel stays ductile underneath - only surface layer hardens.
·With continued impact steel can harden to 500HB above.
·When rolled - never brittle.
·Low friction properties.
·Non-magnetic.
DIN1.3401 Mn13 K700 Manganese steel Plate
Standard
- GB, ASTM, JIS, DIN
- American standard- ASTM A128
- Europe standard- X120Mn12
- JIS Standard- SCMnH11
- China National Standard- GB Mn13
- DIN Standard- 1.3401
- AS Standard-K700
Specifications
Thickness: 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 20mm, 25mm, 30mm etc
Width: 1800-1900mm
Length: 6000mm above Or produce as per request
Brand name
TISCO, the best brand from China;
Specification
|
Product Name
|
Excellent Quality Carbon Steel Rectangle Plate Zinc Plated Carbon Steel Thick Plate Carbon Steel Sheet
|
|
Grade
|
NM360 NM400 NM450 NM500 Mn13 |
|
Standard
|
JIS, AISI, ASTM, DIN, TUV,BV,SUSG3101,GB/T700-2006,etc
|
|
Thickness
|
3mm-60mm or as required
|
|
Length
|
1000-12000mm or as required
|
|
Width
|
600mm-1250mm or as required
|
|
Delivery time
|
7 to 25 working days after the receipt of 30% deposit
|
|
Payment terms
|
TT,LC;30%TT for deposit, 70% balance before shipment or LC at sight
|
|
Supply ablitity
|
10000 Ton/ per Month
|
|
Application
|
Mechanical&manufacture,Steel structure,Shipbuilding,Bridging
|
|
Packing
|
standard export packing (inside:water proof paper,outside:steel covered with strips and pallets)
|
Chemical composition(%)
| Brand |
C |
Si |
Mn |
P |
S |
| X120Mn12/Mn13 |
0.90-1.20 |
0.30-0.80 |
11.00-14.00 |
≤0.035 |
≤0.030 |
Mechanical Properties
| Tensile Strength |
Elongation |
20°C Impact Resistance |
Initial Hardness(HB) |
Hardness after Hardened(HB) |
180°old Bending Test |
| ≥900MPa |
≥40% |
ak≥50(J) |
190-250 |
≥300 |
Qualified |
DIN1.3401 Mn13 K700 Manganese steel Plate

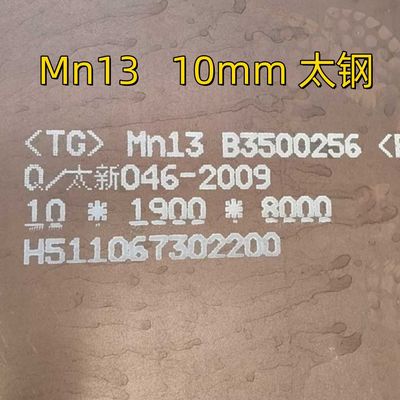

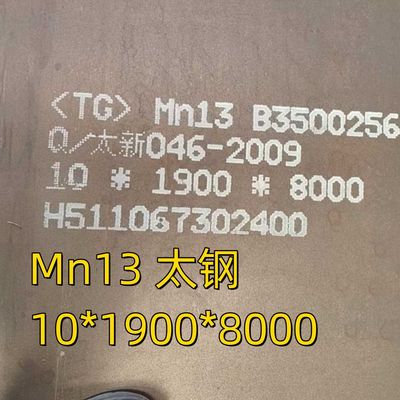

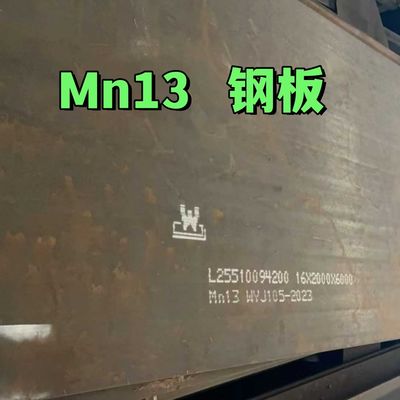

Product Photos:
Q1:Can you send samples?
A:Of course, we can provide customers with free samples and express shipping service to all over of the world.
Q2:What product information do I need to provide?
A:Please kindly provide the grade, width, thickness, surface treatment requirement should you have and quantities you need to purchase.
Q3:It's my first time to import steel products, can you help me with it?
A:Sure,we have agent to arrange the shipment, we will do it together with you.
Q4:What ports of shipment are there?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports according to your needs.
Q5:What about product prices information?
A:Prices various according to periodic price changes of raw materials.
Q6:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment or based on BL copy or LC at sight.
Q7.Do you provide custom made Products service?
A: Yes,if you have your own design , we can produce according to your specification and drawing.
Q8:What are the certifications for your products?
A:We have ISO 9001, MTC, third parties' inspections are all available such SGS, BV ect.
Q9:How long does your delivery time take?
A:In general, our delivery time is within 7-15 days, and may be longer if the quantity is extremely large or special circumstances occur.
Q10: How many countries you already exported to?
A:We have exported to America, Canada, Brazil, Chile, Colombia, Russia, Ukraine, Thailand, Myanmar, Vietnam, India, Kenya, Ghana,somalia and other African countries.Our export experience is rich, we familiar with different market demands, can help customers avoid a lot of trouble.
Q11:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory.
Q12:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed and customers can appoint third parties to inspect the products before loading too.
Q13:How to pack the products?
A: Standard export sea-worthy packaging, the inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion and various climate changes during ocean transportation.
Q14:What is your working time?
A:In general, our online service time is Beijing time: 8:00-22:00, after 22:00, we will reply to your inquiry in the coming working day.
